Technical Specifications

Pin Information

Pinout for 13-pin wireless trailer board

1. Left indicator
2. Fog
3. Earth
4. Right indicator
5. Right side light
6. Brake
7. Left side light
8. Not used
9. Not used
10. Not used
11. Not used
12. Warning flashers
13. Not used

Battery Power, Make and Model

The receiver battery holder has been designed and developed for the Draper D20 range. Other batteries can be used with design modifications. Speak to the team at Original, if this is of interest.

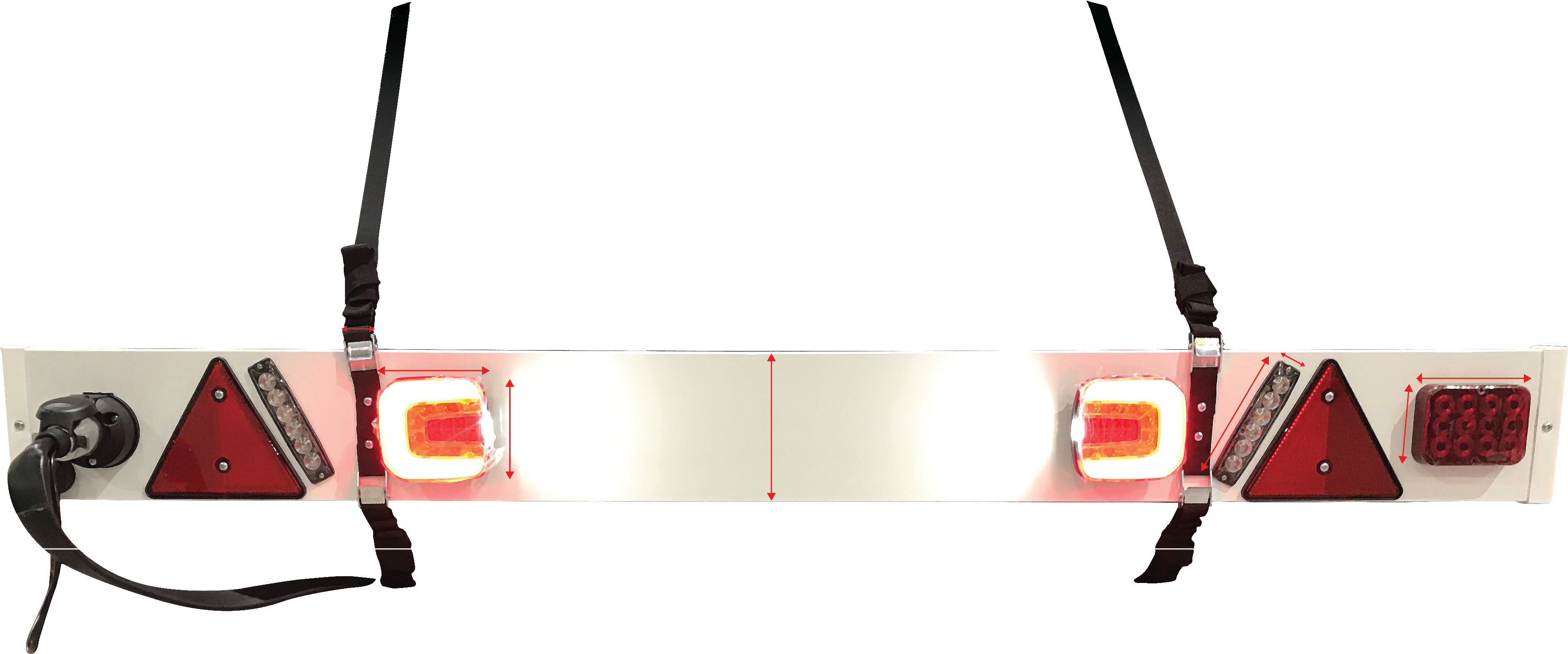

Dimensions & Power Breakdown of the Trailer Board

[dnhot_tooltip tooltip_image=”https://originalads.co.uk/wp-content/uploads/2022/11/cut-out-WTB-nov-2022.png” hotspot_wave_color=”#FFFFFF” _builder_version=”4.19.1″ _module_preset=”default” hotspot_text_text_color=”#FFFFFF” custom_margin=”16px|||||” global_colors_info=”{}”][dnhot_tooltip_child tooltip_hotspot_icon=”||divi||400″ tooltip_content=”

Warning lights
(operate with hazard lights)
0.25amps

” hotspot_horizontal=”79%” hotspot_vertical=”52%” hotspot_sizing=”35″ hotspot_icon_size=”20px” _builder_version=”4.18.0″ _module_preset=”default” global_colors_info=”{}”][/dnhot_tooltip_child][dnhot_tooltip_child tooltip_hotspot_icon=”||divi||400″ tooltip_content=”

Reflectors

” hotspot_horizontal=”10%” hotspot_vertical=”61%” hotspot_sizing=”35″ hotspot_icon_size=”20px” _builder_version=”4.18.0″ _module_preset=”default” global_colors_info=”{}”][/dnhot_tooltip_child][dnhot_tooltip_child tooltip_hotspot_icon=”||divi||400″ tooltip_content=”

Brake Lights 0.18amps

w110mm x h100mm

” hotspot_horizontal=”30%” hotspot_vertical=”61%” hotspot_sizing=”35″ hotspot_icon_size=”20px” _builder_version=”4.18.0″ _module_preset=”default” global_colors_info=”{}”][/dnhot_tooltip_child][dnhot_tooltip_child tooltip_hotspot_icon=”||divi||400″ tooltip_content=”

Fog light
0.05amps

” hotspot_horizontal=”96%” hotspot_vertical=”61%” hotspot_sizing=”35″ hotspot_icon_size=”20px” _builder_version=”4.18.0″ _module_preset=”default” global_colors_info=”{}”][/dnhot_tooltip_child][dnhot_tooltip_child tooltip_hotspot_icon=”||divi||400″ tooltip_content=”

Board

w1530mm x h140mm

” hotspot_horizontal=”49%” hotspot_vertical=”80%” hotspot_sizing=”35″ hotspot_icon_size=”20px” _builder_version=”4.18.0″ _module_preset=”default” global_colors_info=”{}”][/dnhot_tooltip_child][dnhot_tooltip_child tooltip_hotspot_icon=”||divi||400″ tooltip_content=”

Board

w1530mm x h140mm

” hotspot_horizontal=”49%” hotspot_vertical=”61%” hotspot_sizing=”35″ hotspot_icon_size=”20px” _builder_version=”4.18.0″ _module_preset=”default” global_colors_info=”{}”][/dnhot_tooltip_child][dnhot_tooltip_child tooltip_hotspot_icon=”||divi||400″ tooltip_content=”

Indicators

0.14amps

” hotspot_horizontal=”68%” hotspot_vertical=”54%” hotspot_sizing=”35″ hotspot_icon_size=”20px” _builder_version=”4.18.0″ _module_preset=”default” global_colors_info=”{}”][/dnhot_tooltip_child][dnhot_tooltip_child tooltip_hotspot_icon=”||divi||400″ tooltip_content=”

Side lights
0.14amps

” hotspot_horizontal=”70%” hotspot_vertical=”70%” hotspot_sizing=”35″ hotspot_icon_size=”20px” _builder_version=”4.18.0″ _module_preset=”default” global_colors_info=”{}”][/dnhot_tooltip_child][/dnhot_tooltip]

How long does the battery-operated receiver run for?

When fully charged, and with all lights in use simultaneously, the 3Ah battery is capable of powering an LED trailer board for up to 4 hours. Whilst the 5Ah battery can provide up to 6 hours of power with all lights running at the same time. The wireless trailer board kit can be used with standard bulb boards however, the power consumption is a lot higher and therefore the drain on the battery increases. The battery holder on the receiver box can be designed for other batteries to be used, depending on the volume. Contact us for further information on power consumption.
